Hardware problems

Tips on making a system reliable

If you are having problems keeping your weather station up for long periods of time, here are some tips, in decreasing order of importance:

  • Run on dedicated hardware. If you are using the server for other tasks, particularly as your desktop machine, you will have reliability problems. If you are using it as a print or network server, you will probably be OK.

  • Run headless. Modern graphical systems are extremely complex. As new features are added, test suites do not always catch up. Your system will be much more reliable if you run it without a windowing system.

  • Use an Uninterruptible Power Supply (UPS). The vast majority of power glitches are very short-lived — just a second or two — so you do not need a big one. The 425VA unit I use to protect my fit-PC cost $55 at Best Buy.

  • If you buy a Davis VantagePro and your computer has an old-fashioned serial port, get the VantagePro with a serial connection, not a USB connection. See the Wiki article on Davis cp2101 converter problems for details.

  • If you do use a USB connection, put a ferrite coil on each end of the cable to your console. If you have enough length and the ferrite coil is big enough, make a loop, so it goes through the coil twice. See the picture below:

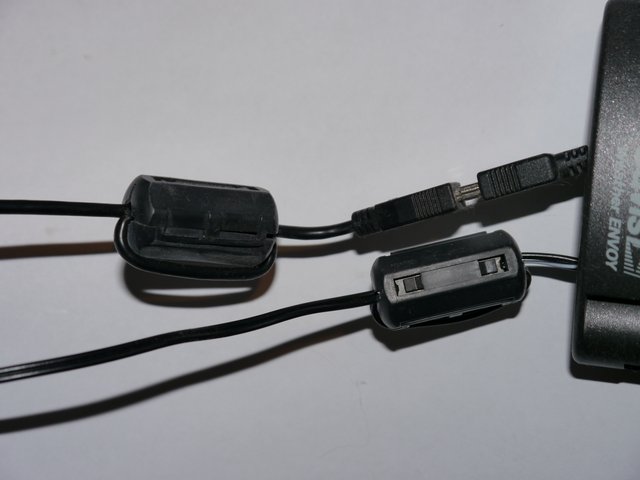

Ferrite Coils

Cable connection looped through a ferrite coil Ferrite coils on a Davis Envoy. There are two coils, one on the USB connection (top wire) and one on the power supply. Both have loops.

Archive interval

Most hardware with data-logging includes a parameter to specify the archive interval used by the logger. If the hardware and driver support it, WeeWX will use this interval as the archive interval. If not, WeeWX will fall back to using option archive_interval specified in [StdArchive]. The default fallback value is 300 seconds (5 minutes).

If the hardware archive interval is large, it will take a long time before anything shows up in the WeeWX reports. For example, WS23xx stations ship with an archive interval of 60 minutes, and Fine Offset stations ship with an archive interval of 30 minutes. If you run WeeWX with a WS23xx station in its factory default configuration, it will take 60 minutes before the first data point shows up, then another 60 minutes until the next one, and so on.

Since reports are generated when a new archive record arrives, a large archive interval means that reports will be generated infrequently.

If you want data and reports closer to real-time, use the weectl device utility to change the interval.

Raspberry Pi

WeeWX runs very well on the Raspberry Pi, from the original Model A and Model B, to the latest incarnations. However, the Pi does have some quirks, including issues with USB power and lack of a clock.

See the Wiki for up-to-date information on Running WeeWX on a Raspberry Pi.

Davis stations

For Davis-specific tips, see the Wiki article Troubleshooting Davis stations

Fine Offset USB lockups

The Fine Offset series weather stations and their derivatives are a fine value and can be made to work reasonably reliably, but they have one problem that is difficult to work around: the USB can unexpectantly lock up, making it impossible to communicate with the console. The symptom in the log will look something like this:

Jun 7 21:50:33 localhost weewx[2460]: fousb: get archive interval failed attempt 1 of 3: could not detach kernel driver from interface 0: No data available

The exact error may vary, but the thing to look for is the "could not detach kernel driver" message. Unfortunately, we have not found a software cure for this. Instead, you must power cycle the unit. Remove the batteries and unplug the USB, then put it back together. No need to restart WeeWX.

More details about Fine Offset lockups can be found in the Wiki.
