The Image generator

WeeWX is configured to generate a set of useful plots. But, what if you don't like how they look, or you want to generate different plots, perhaps with different aggregation types?

The Image generator is controlled by the configuration options in the reference [ImageGenerator].

These options are specified in the [ImageGenerator] section of a skin configuration file. Let's take a look at the beginning part of this section. It looks like this:

[ImageGenerator]
    ...
    image_width = 500
    image_height = 180
    image_background_color = #f5f5f5

    chart_background_color = #d8d8d8
    chart_gridline_color = #a0a0a0
    ...

The options directly under the section name [ImageGenerator] will apply to all plots, unless overridden in subsections. So, unless otherwise changed, all plots will be 500 pixels in width, 180 pixels in height, and will have an RGB background color of #f5f5f5, a very light gray (HTML color "WhiteSmoke"). The chart itself will have a background color of #d8d8d8 (a little darker gray), and the gridlines will be #a0a0a0 (still darker). The other options farther down (not shown) will also apply to all plots.

Time periods

After the "global" options at the top of section [ImageGenerator], comes a set of subsections, one for each time period (day, week, month, and year). These subsections define the nature of aggregation and plot types for that time period. For example, here is a typical set of options for subsection [[month_images]]. It controls which "monthly" images will get generated, and what they will look like:

    [[month_images]]
        x_label_format = %d
        bottom_label_format = %m/%d/%y %H:%M
        time_length = 2592000    # == 30 days
        aggregate_type = avg
        aggregate_interval = 3h
        show_daynight = false

The option x_label_format gives a strftime() type format for the x-axis. In this example, it will only show days (format option %d). The bottom_label_format is the format used to time stamp the image at the bottom. In this example, it will show the time as something like 10/25/09 15:35. A plot will cover a nominal 30 days, and all items included in it will use an aggregate type of averaging over 3 hours. Finally, by setting option show_daynight to false, we are requesting that day-night, shaded bands not be shown.

Image files

Within each time period subsection is another nesting, one for each image to be generated. The title of each sub-sub-section is the filename to be used for the image. Finally, at one additional nesting level (!) are the logical names of all the line types to be drawn in the image. Like elsewhere, the values specified in the level above can be overridden. For example, here is a typical set of options for sub-sub-section [[[monthrain]]]:

        [[[monthrain]]]
            plot_type = bar
            yscale = None, None, 0.02
            [[[[rain]]]]
                aggregate_type = sum
                aggregate_interval = 1d
                label = Rain (daily total)

This will generate an image file with name monthrain.png. It will be a bar plot. Option yscale controls the y-axis scaling — if left out, the scale will be chosen automatically. However, in this example we are choosing to exercise some degree of control by specifying values explicitly. The option is a 3-way tuple (ylow, yhigh, min_interval), where ylow and yhigh are the minimum and maximum y-axis values, respectively, and min_interval is the minimum tick interval. If set to None, the corresponding value will be automatically chosen. So, in this example, the setting

yscale = None, None, 0.02

will cause WeeWX to pick sensible y minimum and maximum values, but require that the tick increment (min_interval) be at least 0.02.

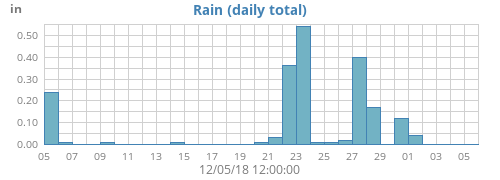

Continuing on with the example above, there will be only one plot "line" (it will actually be a series of bars) and it will have logical name rain. Because we have not said otherwise, the database column name to be used for this line will be the same as its logical name, that is, rain, but this can be overridden. The aggregation type will be summing (overriding the averaging specified in subsection [[month_images]]), so you get the total rain over the aggregate period (rather than the average) over an aggregation interval of 86,400 seconds (one day). The plot line will be titled with the indicated label of 'Rain (daily total)'. The result of all this is the following plot:

Including more than one type in a plot

More than one observation can be included in a plot. For example, here is how to generate a plot with the week's outside temperature as well as dewpoint:

[[[monthtempdew]]]
    [[[[outTemp]]]]
    [[[[dewpoint]]]]

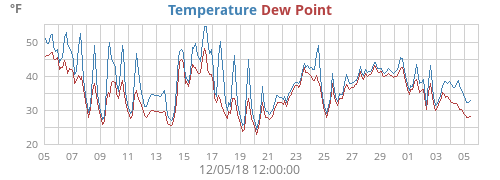

This would create an image in file monthtempdew.png that includes a line plot of both outside temperature and dewpoint:

Including a type more than once in a plot

Another example. Suppose that you want a plot of the day's temperature, overlaid with hourly averages. Here, you are using the same data type (outTemp) for both plot lines, the first with averages, the second without. If you do the obvious it won't work:

# WRONG ##
[[[daytemp_with_avg]]]
    [[[[outTemp]]]]
        aggregate_type = avg
        aggregate_interval = 1h
    [[[[outTemp]]]]  # OOPS! The same section name appears more than once!

The option parser does not allow the same section name (outTemp in this case) to appear more than once at a given level in the configuration file, so an error will be declared (technical reason: formally, the sections are an unordered dictionary). If you wish for the same observation to appear more than once in a plot then there is a trick you must know: use option data_type. This will override the default action that the logical line name is used for the database column. So, our example would look like this:

[[[daytemp_with_avg]]]
    [[[[avgTemp]]]]
        data_type = outTemp
        aggregate_type = avg
        aggregate_interval = 1h
        label = Avg. Temp.
    [[[[outTemp]]]]

Here, the first plot line has been given the name avgTemp to distinguish it from the second line outTemp. Any name will do — it just has to be different. We have specified that the first line will use data type outTemp and that it will use averaging over a one-hour period. The second also uses outTemp, but will not use averaging.

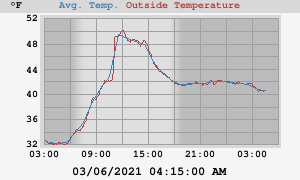

The result is a nice plot of the day's temperature, overlaid with a one-hour smoothed average:

One more example. This one shows daily high and low temperatures for a year:

[[year_images]]
    [[[yearhilow]]]
        [[[[hi]]]]
            data_type = outTemp
            aggregate_type = max
            label = High
        [[[[low]]]]
            data_type = outTemp
            aggregate_type = min
            label = Low Temperature

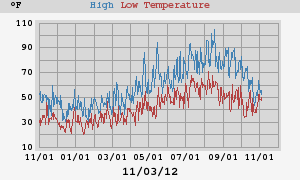

This results in the plot yearhilow.png:

Including arbitrary expressions

The option data_type can actually be any arbitrary SQL expression that is valid in the context of the available types in the schema. For example, say you wanted to plot the difference between inside and outside temperature for the year. This could be done with:

[[year_images]]
    [[[yeardiff]]]
        [[[[diff]]]]
            data_type = inTemp-outTemp
            label = Inside - Outside

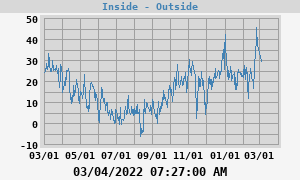

Note that the option data_type is now an expression representing the difference between inTemp and outTemp, the inside and outside temperature, respectively. This results in a plot yeardiff.png:

Changing the unit used in a plot

Normally, the unit used in a plot is set by the unit group of the observation types in the plot. For example, consider this plot of today's outside temperature and dewpoint:

    [[day_images]]
        ...
        [[[daytempdew]]]
            [[[[outTemp]]]]
            [[[[dewpoint]]]]

Both outTemp and dewpoint belong to unit group group_temperature, so this plot will use whatever unit has been specified for that group. See the section Mixed units for details.

However, supposed you'd like to offer both Metric and US Customary versions of the same plot? You can do this by using option unit to override the unit used for individual plots:

    [[day_images]]
        ...
        [[[daytempdewUS]]]
            unit = degree_F
            [[[[outTemp]]]]
            [[[[dewpoint]]]]

        [[[daytempdewMetric]]]
            unit = degree_C
            [[[[outTemp]]]]
            [[[[dewpoint]]]]

This will produce two plots: file daytempdewUS.png will be in degrees Fahrenheit, while file dayTempMetric.png will use degrees Celsius.

Line gaps

If there is a time gap in the data, the option line_gap_fraction controls how line plots will be drawn. Here's what a plot looks like without and with this option being specified:

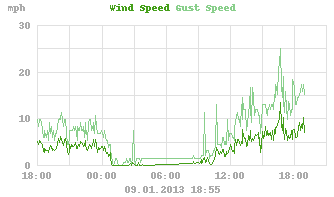

No `line_gap_fraction` specified

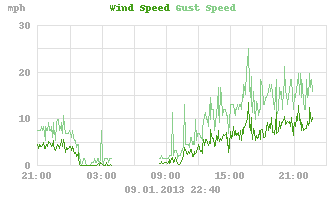

With `line_gap_fraction=0.01`.
Note how each line has been split into two lines.

Progressive vector plots

WeeWX can produce progressive vector plots as well as the more conventional x-y plots. To produce these, use plot type vector. You need a vector type to produce this kind of plot. There are two: windvec, and windgustvec. While they do not actually appear in the database, WeeWX understands that they represent special vector-types. The first, windvec, represents the average wind in an archive period, the second, windgustvec the max wind in an archive period. Here's how to produce a progressive vector for one week that shows the hourly biggest wind gusts, along with hourly averages:

[[[weekgustoverlay]]]
    aggregate_interval = 1h
    [[[[windvec]]]]
        label = Hourly Wind
        plot_type = vector
        aggregate_type = avg
    [[[[windgustvec]]]]
        label = Gust Wind
        plot_type = vector
        aggregate_type = max

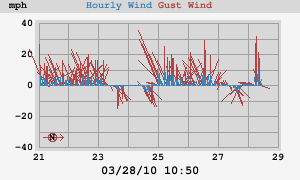

This will produce an image file with name weekgustoverlay.png. It will consist of two progressive vector plots, both using hourly aggregation (3,600 seconds). For the first set of vectors, the hourly average will be used. In the second, the max of the gusts will be used:

By default, the sticks in the progressive wind plots point towards the wind source. That is, the stick for a wind from the west will point left. If you have a chronic wind direction (as I do), you may want to rotate the default direction so that all the vectors do not line up over the x-axis, overlaying each other. Do this by using option vector_rotate. For example, with my chronic westerlies, I set vector_rotate to 90.0 for the plot above, so winds out of the west point straight up.

If you use this kind of plot (the out-of-the-box version of WeeWX includes daily, weekly, monthly, and yearly progressive wind plots), a small compass rose will be put in the lower-left corner of the image to show the orientation of North.

Overriding values

Remember that values at any level can override values specified at a higher level. For example, say you want to generate the standard plots, but for a few key observation types such as barometer, you want to also generate some oversized plots to give you extra detail, perhaps for an HTML popup. The standard skin.conf file specifies plot size of 300x180 pixels, which will be used for all plots unless overridden:

[ImageGenerator]
    ...
    image_width = 300
    image_height = 180

The standard plot of barometric pressure will appear in daybarometer.png:

[[[daybarometer]]]
    [[[[barometer]]]]

We now add our special plot of barometric pressure, but specify a larger image size. This image will be put in file daybarometer_big.png.

[[[daybarometer_big]]]
    image_width  = 600
    image_height = 360
    [[[[barometer]]]]
